Chamber Specifications
- Product Model: HS-06 Mini-Single+
- User Capacity: Single
- Chamber Material: Q335 special steel for compression

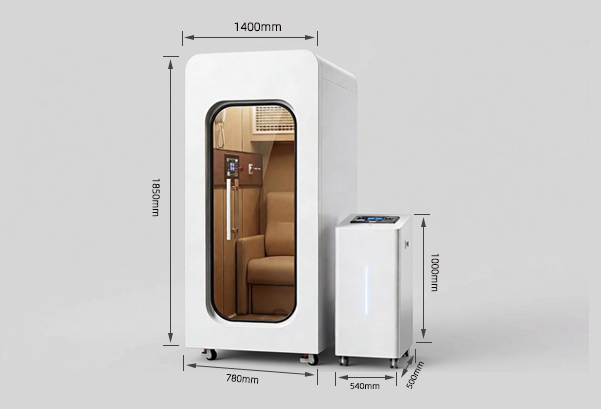

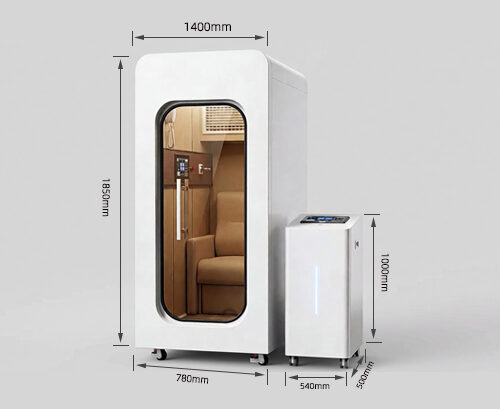

- Chamber Dimensions (L×W×H): 1400*780*1850mm
- Chamber Weight: ≈480 kg
- Cabin Body Configuration: 1 built-in touch control screen, red light therapy lamp，Decorative wall panel, fixed sofa, air conditioning, calling equipment, oxygen intake end, carpet, 1 manual pressure relief valve, environmental soft installation, 2 automatic pressure relief valves
- Maximum Working Pressure: 100KPA
- Cabin Dispersed Oxygen Concentration: ≤23%
- Basic Function Configuration: 24V power interface, constant voltage, automatic pressure relief
- Production Cycle: 25 days
Host Specifications
- Oxygen Production Type: PSA oxygen generator
- Host Dimensions(L×W×H): 540*500*1000mm
- Host Control System: Integrated pressure and oxygen control
- Voltage: 220V / 50Hz or 110V / 60Hz (customizable)
- Rated Power: 1500W
- Operating Noise:＜ 55 dB
- Oxygen Flow Rate: 10 L/min
- Oxygen Production: Air Compression & Separation
- Host Oxygen Concentration: 93% ± 3%
- Host Weight: ≈71KG
Red Light Therapy Device Parameters
- Actual Power: 50W
- Input Voltage: DC24V
- Compatible Input Voltage: AC100-240V
- Irradiance: >70 mW/cm² @ 6 inches
- Spectrum: 660nm, 850nm (customizable)
